Since 1992 PTL Equipment has been committed to designing and manufacturing the highest quality escalator safety stations available.
Ease of installation provides another attractive feature for escalator modernization projects. Simple survey and installation instructions guide mechanics through the retrofit process quickly and with ease. Give us a try on your next escalator project and let PTL introduce you to the “gold” standard of escalator operational excellence.
ES1F VR
ESCALATOR EMERGENCY STOP STATIONS
FEATURES:
304 Stainless Steel Construction
3-1/4″ Wide X 4-1/2″ Long Station Box
3-5/8″ Deep Electrical Enclosure
In Newel – Frame Mounting Design
PTL Positive Stop Vandal Resistant Stop Button
Clear 1/8″ Lexan Cover
Heavy Duty Spring Cover Hinge
Voltage Specific Audible Alarm
All components ANSI A17.1 National Code and NYCBC Compliant
AVAILABLE FEATURES:
Naval Brass
Pedestal Mounting Design (ES1P)
2-1/2″ Wide X 4-1/2″ Long Station Box (ES1* VR Slim)
Custom Mounting Bracket Designs
Custom Material and Layout Designs
ES2F VR
ESCALATOR START STATIONS
FEATURES:
304 Stainless Steel Construction
3-1/4″ Wide X 6″ Long Station Box
3-5/8″ Deep Electrical Enclosure
In Newel – Frame Mounting Design
PTL Positive Stop Vandal Resistant Start Button
Clear 1/8″ Lexan Locked Cover
Heavy Duty Spring Cover Hinge
All components ANSI A17.1 National Code and NYCBC Compliant
AVAILABLE FEATURES:
Naval Brass
Pedestal Mounting Design (ES2P)
2-1/2″ Wide X 7-1/4″ Long Station Box (ES2* VR Slim)
Site Specific Start Lock & Cam Locking Key Option
Custom Mounting Bracket Designs
Custom Material and Layout Designs

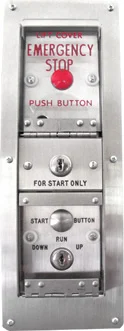

ES3F VR
ESCALATOR STOP/START STATIONS
FEATURES:
304 Stainless Steel Construction
3-1/4″ Wide X 10-1/2″” Long Station Box
3-5/8″ Deep Electrical Enclosure
In Newel – Frame Mounting Design
PTL Positive Stop Vandal Resistant Stop & Start Buttons
Clear 1/8″ Lexan Covers
Heavy Duty Spring Cover Hinges
Voltage Specific Audible Alarm
All components ANSI A17.1 National Code and NYCBC Compliant
AVAILABLE FEATURES:
Naval Brass
Pedestal Mounting Design (ES3P)
2-1/2″ Wide X 11-3/4″ Long Station Box (ES3* VR Slim)
Site Specific Lock/Key Options
Custom Mounting Bracket Designs
Custom Material and Layout Design
EB2
National Start Station
FEATURES:
Vandal-resistant spanner screws
Non-security, double momentary start keyswitch
ES2- Stainless Steel- 3.25″W x 3.25″L x 3.625″D
EB2- Naval Brass- 3.25″W x 3.25″L x 3.625″D
Also available in Stainless
CUSTOM
ESCALATOR FIXTURES:
Custom designed for specific purposes.
Example to the Left – designed for the Athens, Greece Public Transit Authority
MOUNTING OPTIONS
NEWEL OR PEDESTAL
PTL provides a multi-use flange which suspends the fixture, frames the cutout, and bends to accept the curvature of the newel decking. Pedestal Mounting which is intended for glass balustrades. PTL will custom manufacture a pedestal to meet your specifications.
